#1 by JXMaster

Hello,
I'm using Substance Designer 2017.1(or Substance Designer 6), and after I installed the shader, it DID appear in shader list but being set disabled. When I click "reload all shaders", an error message instantly jumped out. I guess there is something changed in the GLSL codes so it conflicts with Substance or OpenGL.

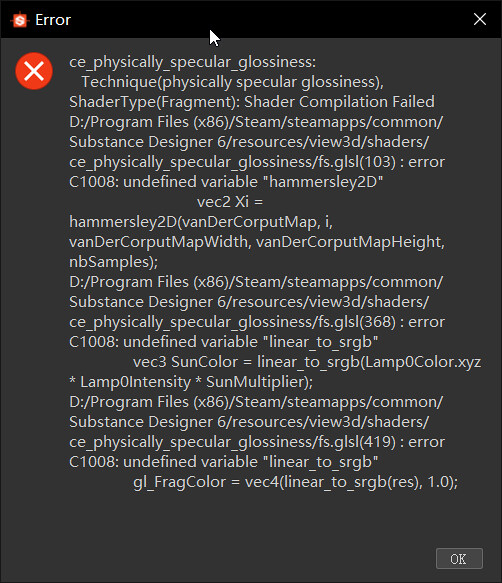

The Error message is shown below:

I'm not quite familiar with GLSL so I can't tell why this error occurs. Also, I'm using Substance Subscription so that I can't roll back to Substance Designer 5 which is tested in the documentation.

Powered by CRYENGINE.

Re: Substance CRYENGINE shader doesn't work on Substance Designer 6

#2 by jasiuj

It's looks like CRYENGINE shader is not supported for Designer 2017 at this moment. So we should wait a little bit for it, I hope

Re: Substance CRYENGINE shader doesn't work on Substance Designer 6

#3 by collinbishop

Hey there,

After releasing the Substance shader we got in contact with Fabrice at Allegorithmic and discussed the steps to move the shader over to SD 6. We would need to fix the base color settings and then also the upgrade to Fibonacci in the algorithm. Expect an update in the coming weeks after we have tested it and integrated it into our internal pipeline and then QA'd for release.

Collin

Re: Substance CRYENGINE shader doesn't work on Substance Designer 6

#4 by graf_fridula

Nice! Looking forward to the shader in Substance.

Re: Substance CRYENGINE shader doesn't work on Substance Designer 6

#5 by peko29

Thanks for the command of this topic, thanks to that I got here. Cool thing.

YouTube

Re: Substance CRYENGINE shader doesn't work on Substance Designer 6

#6 by just_saiyan

Are there any updates on the Substance CRYENGINE Shader?
Thought I would bump this old post instead of making a fresh one.

Re: Substance CRYENGINE shader doesn't work on Substance Designer 6

#7 by lavizh

Hasnt been an engine update yet since 5.4. Hoping for Designer and Painter 2018 support soon. Fingers crossed.

Re: Substance CRYENGINE shader doesn't work on Substance Designer 6

#8 by graf_fridula

Hasnt been an engine update yet since 5.4. Hoping for Designer and Painter 2018 support soon. Fingers crossed.

I also hope that this updates soon...

Re: Substance CRYENGINE shader doesn't work on Substance Designer 6

#9 by tmarot-m

Hello,
I fixed Cryengine shader for the last version of Substance Painter :

Code: Select all

//- Allegorithmic Metal/Rough and opacity PBR shader
//- ================================================
//-
//- Import from libraries.
import lib-sampler.glsl
import lib-random.glsl
import lib-pbr.glsl
import lib-alpha.glsl

//- Show back faces as there may be holes in front faces.
//: state cull_face off

//: param custom { "default": false, "label": "Enable POM" }
uniform bool enablePOM;
//: param custom { "default": 0, "label": "POM Displacement", "min": 0.0, "max": 1.0 }
uniform float Depth;
//: param custom { "default": 0, "label": "Height bias", "min": 0.0, "max": 1.0 }
uniform float HeightBias;
//: param custom { "default": 0, "label": "Self Shadow Strength", "min": 0.0, "max": 5.0 }
uniform float SelfShadowStrenght;


//: param custom { "default": 0, "label": "Back Diffuse Multiplier", "min": 0.0, "max": 4.0 }
uniform float BackDiffuseMultiplier;
//: param custom { "default": 0, "label": "Transmittance Color", "widget": "color" }
uniform vec3 TransmittanceColor;


//: param custom { "default": 0, "label": "Sun Angle", "min": -180, "max": 180 }
uniform float SunAngle;
//: param custom { "default": 0, "label": "Sun Direction", "min": 0, "max": 360 }
uniform float SunDirection;
//: param custom { "default": 1, "label": "Sun Intensity Multiplier", "min": 0.0, "max": 50.0 }
uniform float SunMultiplier;
//: param custom { "default": 1, "label": "Sun Color", "widget": "color" }
uniform vec3 SunColorBase;

vec3 light_pos = vec3(10.0, 10.0, 10.0);


//- Channels needed for metal/rough workflow are bound here.
//: param auto channel_basecolor
uniform sampler2D basecolor_tex;
//: param auto channel_glossiness
uniform sampler2D glossiness_tex;
//: param auto channel_displacement
uniform sampler2D displacement_tex;
//: param auto channel_specular
uniform sampler2D specular_tex;
//: param auto channel_transmissive
uniform sampler2D transmissive_tex;

float fit_roughness(float r)
{
// Fit roughness values to a more usable curve
	return r;
}




vec3 CEIBLSpecularContributionQMC(
	float maxLod,
	int nbSamples,
	vec3 fixedNormalWS,
	vec3 Tp,
	vec3 Bp,
	vec3 pointToCameraDirWS,
	vec3 specColor,
	float roughness)
{
	vec3 sum = vec3(0.0,0.0,0.0);

	float ndv = max( 1e-8, abs(dot( pointToCameraDirWS, fixedNormalWS )) );

	for(int i=0; i<nbSamples; ++i)
	{
		vec2 Xi = fibonacci2D(i, nbSamples);
		vec3 Hn = importanceSampleGGX(Xi,Tp,Bp,fixedNormalWS,roughness);
		vec3 Ln = -reflect(pointToCameraDirWS,Hn);

		float ndl = dot(fixedNormalWS, Ln);

		// Horizon fading trick from http://marmosetco.tumblr.com/post/81245981087
		const float horizonFade = 1.3;
		float horiz = clamp( 1.0 + horizonFade * ndl, 0.0, 1.0 );
		horiz *= horiz;
		ndl = max( 1e-8, abs(ndl) );

		float vdh = max( 1e-8, abs(dot(pointToCameraDirWS, Hn)) );
		float ndh = max( 1e-8, abs(dot(fixedNormalWS, Hn)) );
		float lodS = roughness < 0.01 ? 0.0 :
			computeLOD(
				Ln,
				probabilityGGX(ndh, vdh, roughness)
				);
		sum +=
			envSampleLOD(Ln,lodS) *
			cook_torrance_contrib(
				vdh, ndh, ndl, ndv,
				specColor,
				roughness) * horiz;
	}

	return sum / nbSamples;
}

float GetLuminance( vec3 color )
{
	return dot( color, vec3( 0.2126, 0.7152, 0.0722 ) );
}

float SmoothnessToRoughness(float smoothness)
{
	return (1.0 - smoothness) * (1.0 - smoothness);
}

float DiffuseBRDF(vec3 N, vec3 V, vec3 L, float Gloss, float NdotL)
{
	// TODO: Merge with Specular BRDF to save a few instructions

	float m = SmoothnessToRoughness(Gloss);
	m *= m * m;  // Map GGX to Oren-Nayar roughness (purely empirical remapping)

	// Approximation of the full quality Oren-Nayar model
	float s = dot(L, V) - dot(N, L) * dot(N, V);
	float t = s <= 0 ? 1 : max(max(dot(N, L), dot(N, V)), 1e-6);
	float A = 1.0 / (1.0 + (0.5 - 2.0 / (3.0 * 3.1415)) * m);
	float B = m * A;

	return NdotL * max(A + B * (s / t), 0);
}

vec3 PhysicalBRDF(vec3 N, vec3 V, vec3 L, float m, vec3 SpecCol, float NormalizationFactor)
{
	float m2 = m * m;

	// Half vector
	vec3 H = normalize( V + L );

	// GGX NDF
	float NdotH = clamp( dot( N, H ),0.0,1.0 );
	float spec = (NdotH * NdotH) * (m2 - 1) + 1;
	spec = m2 / (spec * spec) * NormalizationFactor;

	// Schlick-Smith Visibility Term
	float k = (0.8 + m * 0.5) * (0.8 + m * 0.5) / 2;
	float Gv = clamp( dot( N, V ),0.0,1.0 ) * (1 - k) + k;
	float Gl = clamp( dot( N, L ),0.0,1.0 ) * (1 - k) + k;
	spec /= max( Gv * Gl, 1e-6 );

	// Schlick approximation for Fresnel
	vec3 fresnel = mix( SpecCol, vec3(1.0,1.0,1.0), pow( 1 - dot(L, H), 5 ) );

	return (fresnel * spec) / 4.0;
}

vec3 PhysicalBRDF(vec3 N, vec3 V, vec3 L, float Gloss, vec3 SpecCol)
{
	float m = max(SmoothnessToRoughness( Gloss ), 0.001);  // Prevent highlights from getting too tiny without area lights
	return PhysicalBRDF(N, V, L, m, SpecCol, 1.0);
}

vec3 ParallaxOcclusionMap(vec2 baseTC,  float lod, vec3 viewDirNrm,  int numSteps,  float displacement,  float bias)
{
	float step =  1.0 / numSteps;
	float bumpScale = displacement;

	vec2 delta = vec2(viewDirNrm.x, viewDirNrm.y) * bumpScale / (-viewDirNrm.z * numSteps); // / max(-viewDirNrm.z * numSteps, 0.1)

	baseTC -= (1.0 - bias) * numSteps * delta;

	float NB0 = texture(displacement_tex, baseTC).r;


	float height = 1 - step;
	vec4 offset = vec4(baseTC + delta, 0, lod);

	float NB1 = texture(displacement_tex, offset.xy).r;


	for (int i=0; i<numSteps; i++)
	{
	//	[flatten]
		if (NB1 >= height)
			break;

		NB0 = NB1;

		height -= step;
		offset.xy += delta;

		NB1 = textureLod(displacement_tex, offset.xy, offset.w).r;

	}

	vec4 offsetBest = offset;
	float error = 1.0;

	float t1 = height;
	float t0 = t1 + step;

	float delta1 = t1 - NB1;
	float delta0 = t0 - NB0;

	vec4 intersect = vec4(delta * numSteps, delta * numSteps + baseTC);

	float t = 0;

	for (int i=0; i<10; i++)
	{
	//	[flatten]
		if (abs(error) <= 0.01)
			break;

		float denom = delta1 - delta0;
		t = (t0 * delta1 - t1 * delta0) / denom;
		offsetBest.xy = -t * intersect.xy + intersect.zw;

		float NB = textureLod(displacement_tex, offsetBest.xy, offsetBest.w).r;


		error = t - NB;
		if (error < 0)
		{
			delta1 = error;
			t1 = t;
		}
		else
		{
			delta0 = error;
			t0 = t;
		}
	}
	return vec3(offsetBest.xy, t);
}

float ComputeTextureLOD(vec2 uv,vec2 texDim)
{
	uv *= texDim;

	vec2 ddx_ = dFdx(uv);
	vec2 ddy_ = dFdy(uv);
	vec2 mag = abs(ddx_) + abs(ddy_);

	float lod = log2(max(mag.x, mag.y));
	return lod;
}

vec3 ThinTranslucency(vec3 N, vec3 L, vec3 transmittanceColor)
{
	float transmittance = clamp(dot(-N, L) + 0.2, 0.0, 1.0);

	float fresnel = (1 - transmittance) * (1 - transmittance);
	fresnel *= fresnel;

	return transmittance * (1 - fresnel) * transmittanceColor;
}

mat3 rotationMatrix(vec3 axis, float angle)
{
    axis = normalize(axis);
    float s = sin(angle);
    float c = cos(angle);
    float oc = 1.0 - c;

    return mat3(oc * axis.x * axis.x + c,           oc * axis.x * axis.y - axis.z * s,  oc * axis.z * axis.x + axis.y * s,
                oc * axis.x * axis.y + axis.z * s,  oc * axis.y * axis.y + c,           oc * axis.y * axis.z - axis.x * s,
                oc * axis.z * axis.x - axis.y * s,  oc * axis.y * axis.z + axis.x * s,  oc * axis.z * axis.z + c
               );
}

//- Shader entry point.
vec4 shade(V2F inputs)
{
  // Discard current fragment on the basis of the opacity channel
  // and a user defined threshold
  alphaKill(inputs.tex_coord);

    // Fetch material parameters, and conversion to the specular/glossiness model

  // Get detail (ambient occlusion) and global (shadow) occlusion factors
//  float occlusion = getAO(inputs.tex_coord) * getShadowFactor();

//M_PI
//uniform float SunPitch;

//uniform float SunYaw;
	vec2 pos = vec2(cos(radians(SunAngle)), sin(radians(SunAngle)));
	light_pos = vec3(0, pos.x, pos.y);
	light_pos = rotationMatrix(vec3(0,1,0), radians(SunDirection)) *light_pos;
    vec3 normalWS = inputs.normal;
	vec3 tangentWS = inputs.tangent;
	vec3 binormalWS = inputs.bitangent;

	vec3 cameraPosWS = camera_pos;
	vec3 pointToLight0DirWS = normalize(vec3(0, pos.x, pos.y) - inputs.position);
	vec3 pointToCameraDirWS = normalize(cameraPosWS - inputs.position);

	vec2 uv = inputs.tex_coord;




	float mdDisplacement = 1.0;
	if(enablePOM)
	{
		float lod = ComputeTextureLOD(uv, vec2(4096,4096));

		vec3 s = vec3(dot(pointToCameraDirWS,tangentWS) ,dot(pointToCameraDirWS,binormalWS), dot(pointToCameraDirWS,normalWS));
		mdDisplacement = Depth*0.05;
		float mdHeightBias = HeightBias;
		vec3 offsetBest = ParallaxOcclusionMap(uv, lod, s, 15, mdDisplacement, mdHeightBias);
		uv.xy = offsetBest.xy;
	}




	  vec3 normal_vec = getTSNormal(uv);
			  normal_vec = normalize(
				normal_vec.x * inputs.tangent +
				normal_vec.y * inputs.bitangent +
				normal_vec.z * inputs.normal
  );

	vec3 fixedNormalWS = normal_vec;

	// ------------------------------------------
	// Compute material model (diffuse, specular & glossiness)
	//const vec3 dielectricColor = vec3(0.04, 0.04, 0.04);
	const float minRoughness=1e-4;
	// Convert the base color from sRGB to linear (we should have done this when
	// loading the texture but there is no way to specify which colorspace is
	// uѕed for a given texture in Designer yet)

	vec3 diffColor = getBaseColor(basecolor_tex, uv).rgb ;

	vec3 specColor = getSpecularColor(specular_tex, uv).rgb;
	float fGloss = getGlossiness(glossiness_tex, uv);
	float roughness = max(minRoughness, fit_roughness(1.0 - fGloss));

	  vec3 Tp = normalize(
		inputs.tangent
		- normal_vec*dot(inputs.tangent, normal_vec)
	  ); // local tangent
	  vec3 Bp = normalize(
		inputs.bitangent
		- normal_vec*dot(inputs.bitangent, normal_vec)
		- Tp*dot(inputs.bitangent, Tp)
	  ); // local bitangent


	vec3 specCubeMap = CEIBLSpecularContributionQMC(
		maxLod-2,
		nbSamples,
		fixedNormalWS,
		Tp,
		Bp,
		pointToCameraDirWS,
		specColor,
		roughness);
	vec3 diffCubeMap = envIrradiance(fixedNormalWS);

	vec3 albedo = diffColor;
	albedo *= clamp( 1 - GetLuminance( specColor ), 0.0, 1.0 );

	vec3 cDiffuse = vec3(0,0,0);
	vec3 cSpecular = vec3(0,0,0);


	vec3 SunColor = SunColorBase* SunMultiplier;
	vec3 nm = 0.5*(normalize(fixedNormalWS)+vec3(1,1,1));


	vec3 sunDir = normalize(light_pos.xyz);
	float NdotL = clamp( dot( sunDir, fixedNormalWS ), 0.0, 1.0 );

	vec3 Transmittance = vec3(1,1,1);

	float fTranslucency = BackDiffuseMultiplier;
	fTranslucency *= texture(transmissive_tex, uv).r;



	Transmittance = clamp(fTranslucency, 0.0, 1.0 ) * TransmittanceColor.rgb;


	vec3 sunSpec = PhysicalBRDF( normalize(fixedNormalWS), normalize(pointToCameraDirWS),  sunDir, fGloss, specColor );// * SunColor.w;
	float diffuseTerm = DiffuseBRDF(normalize(fixedNormalWS),  normalize(pointToCameraDirWS),  sunDir, fGloss, NdotL);
	vec3 transmittance = ThinTranslucency(fixedNormalWS, sunDir, Transmittance);
	float fSelfShadowing = 1.0;
	if(enablePOM)
	{
		vec3 light = vec3(dot(sunDir,tangentWS) ,dot(sunDir,binormalWS), dot(sunDir,normalWS));

		vec2 lightDelta = vec2(light.x, light.y) * mdDisplacement;


		float h0 = texture(displacement_tex, uv).r;
		float h = h0;

		h = max(0, texture(displacement_tex, uv + 1.000 * lightDelta).r);
		h = max(h, texture(displacement_tex, uv + 0.875 * lightDelta).r);
		h = max(h, texture(displacement_tex, uv + 0.750 * lightDelta).r);
		h = max(h, texture(displacement_tex, uv + 0.625 * lightDelta).r);
		h = max(h, texture(displacement_tex, uv + 0.500 * lightDelta).r);
		h = max(h, texture(displacement_tex, uv + 0.375 * lightDelta).r);
		h = max(h, texture(displacement_tex, uv + 0.250 * lightDelta).r);
		h = max(h, texture(displacement_tex, uv + 0.125 * lightDelta).r);


		fSelfShadowing = 1- clamp((h - h0) * SelfShadowStrenght, 0.0, 1.0);
	}

	float occlusion = getAO(inputs.tex_coord) * getShadowFactor();
	fSelfShadowing *= occlusion;

	cDiffuse = (diffCubeMap) + ( SunColor.xyz*fSelfShadowing ) * (diffuseTerm + transmittance);
	cSpecular = specCubeMap;
	cSpecular += sunSpec * NdotL * SunColor.xyz*fSelfShadowing;

	vec3 res =  albedo * cDiffuse + cSpecular;
	//gl_FragColor = vec4(linear_to_srgb(vec3(fSelfShadowing,fSelfShadowing,fSelfShadowing)), 1.0);

	return vec4(res, 1.0);

/*
  // Fetch material parameters, and conversion to the specular/glossiness model
  float glossiness = 1.0 - getRoughness(roughness_tex, inputs.tex_coord);
  vec3 baseColor = getBaseColor(basecolor_tex, inputs.tex_coord);
  float metallic = getMetallic(metallic_tex, inputs.tex_coord);
  vec3 diffColor = generateDiffuseColor(baseColor, metallic);
  vec3 specColor = generateSpecularColor(baseColor, metallic);
  // Get detail (ambient occlusion) and global (shadow) occlusion factors
  float occlusion = getAO(inputs.tex_coord) * getShadowFactor();

  // Feed parameters for a physically based BRDF integration
  return pbrComputeBRDF(inputs, diffColor, specColor, glossiness, occlusion); */
  return vec4(1,1,1,1);
}

//- Entry point of the shadow pass.
void shadeShadow(V2F inputs)
{
  // Discard current fragment on the basis of the opacity channel
  // and a user defined threshold
  alphaKill(inputs.tex_coord);
}

Copy it and paste it in the Cryengine.glsl file instead of the old code.

I tried to fix the shader for Substance Designer but it looks a bit more complicated.
Hope this helps.

Re: Substance CRYENGINE shader doesn't work on Substance Designer 6

#10 by graf_fridula

Hello,
I fixed Cryengine shader for the last version of Substance Painter :

Copy it and paste it in the Cryengine.glsl file instead of the old code.

I tried to fix the shader for Substance Designer but it looks a bit more complicated.
Hope this helps.

You´re a saint! It worked fine!!

Display posts from previous

Sort by

Who is online
